20' Battery Storage and Recharging System

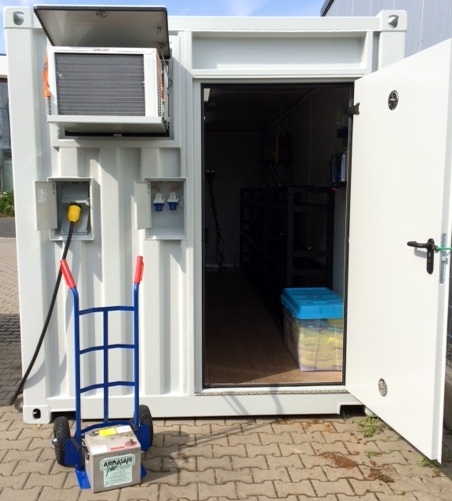

20’ CSC certified container deployable by truck, ship and train, walls & ceiling are insulated and paneled with non-flammable material, available with Climate control unit, 110v outlets, overhead lighting, circuit breaker box

Outside junction box for external power source and cable set for external junction to charge vehicle mounted batteries

12,000BTU Air Conditioner with electric heater, easy set up to pace into operation and for stowage. 2 ea. additional wall mounted heating units.

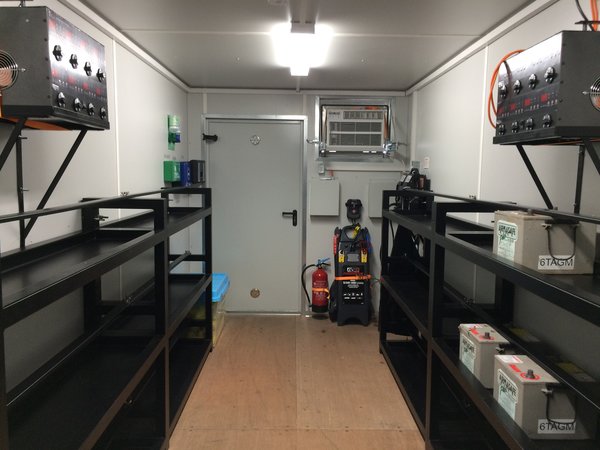

Racks for storing up to 90 ea. batteries

12V: 1400 CA | 1250 CCA| 17200 PEAK AMPS

24V: 1250 CA | 1100 CCA| 8600 PEAK AMPS

Durable Roto-Mold casing—the strongest resin in the industry

Wheels for portability

Extra-long, high-strand, double insulation cable

Heavy-duty clamps

Built-in voltmeter

Auxiliary connector for alternate cables

8A external 120V AC automatic charger

Reverse polarity alarm

Voltage detection

Replaceable fuse

Contents: (1) DSR113 ProBooster (1) SC3DSR 8A charger (1) Charger plug

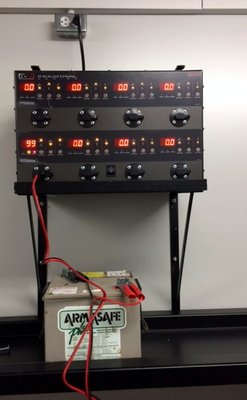

EIGHT COMPLETELY INDEPENDENT, FULLY AUTOMATIC, MICROPROCESSOR-CONTROLLED CHARGING BANKS
FOR CHARGING 12V LEAD-ACID, DEEP-CYCLE, AGM AND GEL CELL BATTERIES •–
Charge 8 different size batteries at the same time •
Charger automatically selects from 2 to 12 amps output per bank •
Eight detachable 6 foot cables with 75 amp, color-coded clamps •
Separate digital display for each bank •
Separate standard and gel settings to assure a complete charge •
Multi-stage charging algorithm •
Safe-start, reverse polarity and short circuit protection ─
the charger will not apply current to the battery clamps until they are properly connected •
Overcharge protection ─ the charger will not overcharge the battery •
Patent pending “thermal runaway” protection •
Fan-cooled for dependability and peak performance •
Heavy-duty steel case for durability •
UL/CUL approved

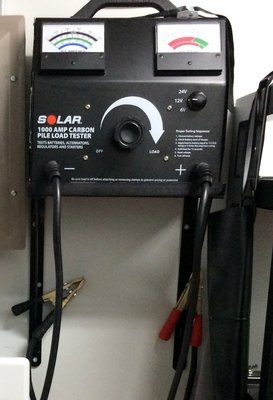

The 1876 provides variable load carbon pile testing capability for 6, 12 or 24 Volt batteries to 2000 CCA. It allows quick, conclusive assessment of battery capacity as well as at-a-glace diagnosis of alternator output and starting system capacity. With dual gauges, it is easy to manage the testing process and observe the results, Plus, load control is smooth and precise.

UPC Code: 8-42149-02421-5

Cooling Capacity: (BTU) 12,000/11,600

Heating Capacity: (BTU) 11,000/8,500

Coverage: (sq. ft) 450–550

EER: 10.9

Energy Star Rated: No

Fan Speeds: (cool/fan/heat) 3/3/3

Amps: 5/5.2 (cool) -

16/14.5 (heat)

Watts: 1,100/1,064 (cool) -

3,550/2,950 (heat)

Decibels: (Hi/Mi/Lo) 61/58/55

Window Width: (min/max in.) 27/36

Window Height: (min in.) 16.5

Unit Dimensions: (WxHxD in.) 223/4 x 161/4 x 23

Pkg Dimensions: (WxHxD in.) 25 x 17 x 281/2

Stuffing Qty: (20ʹ/40ʹ/40ʹ HQ) 135/270/324

Weight: (net/gross lbs) 84/95

Refrigeration: R410A
